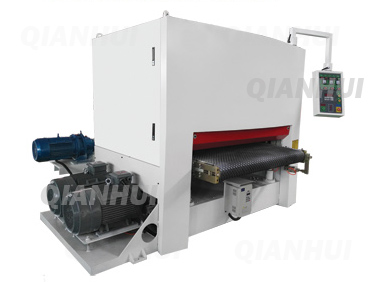

Heavy Duty Belt Sander Plywood Sanding Line

Heavy Duty Belt Sander Plywood Sanding Line

Inquire Now Next Product

Product DETAILS

Basic Technical Specifications of Heavy Duty Plywood Sander

Model	QH2113R-R
Working Width	40-1300mm
Working Thickness	3-140mm
Minimum Working Length	850mm
Infeed Speed	5-45m/min
First Sanding Belt Rotation Speed	25m/s
Second Sanding Belt Rotation Speed	23m/s
First Sanding Belt Size	1330x2800mm
Second Sanding Belt Size	1330x2800mm
First Sanding Roller Diameter	Φ420mm
Second Sanding Roller Diameter	Φ420mm
Sanding Motor	75kw+55kw
Feeding Motor	15kw
Lifting Motor	0.75kw
Brush Motor	0.37kw
Electric Component	Schneider
Working Air Pressure	0.8Mpa
Compressed Air Consumption	0.16m³/h
Suction Air Volume	8000m³/h
Suction Air Speed	25-30m/s
Weight	About 11000kgs
Dimension	3350x3150x2500mm
