25 Layers Automatic Plywood Hot Press Machine with Auto Loading/Unloading System

25 Layers Automatic Plywood Hot Press Machine with Auto Loading/Unloading System

Product DETAILS

25 Layers Automatic Hot Press Machine
Model	QHRY-800T-50L
Nominal Pressure	8000 KN

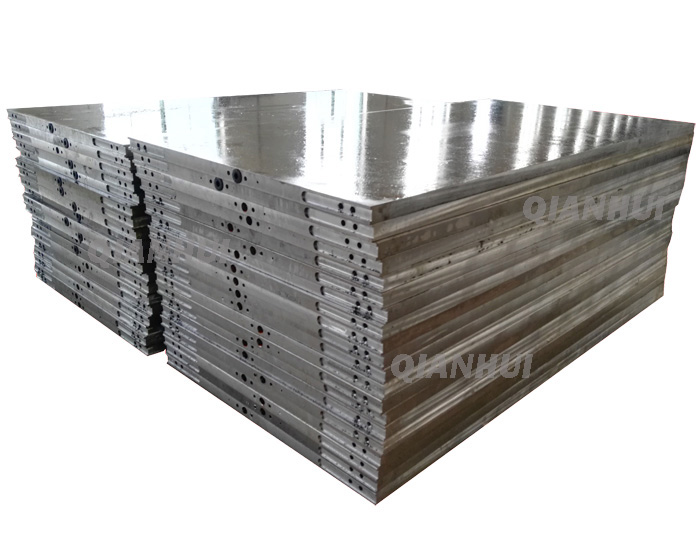

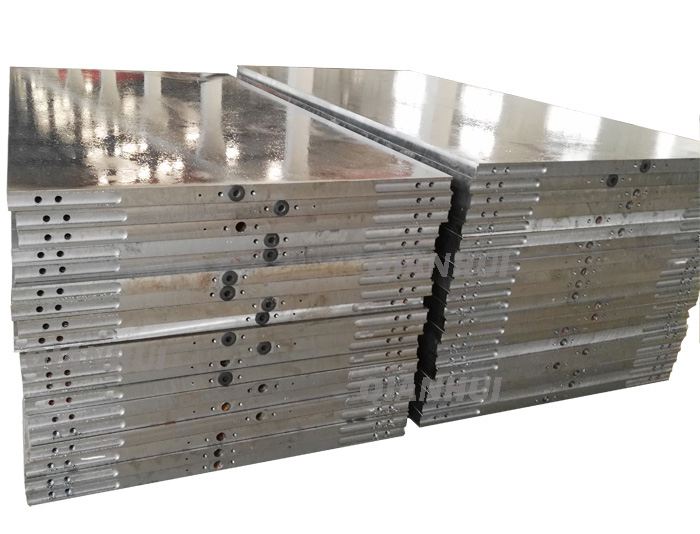

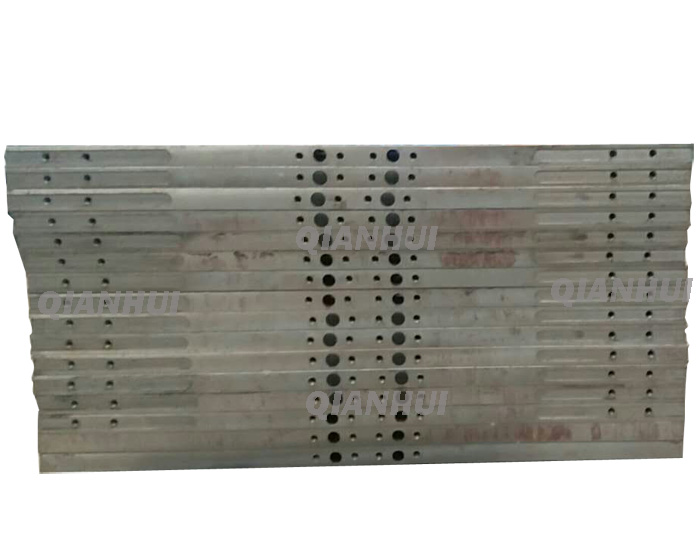

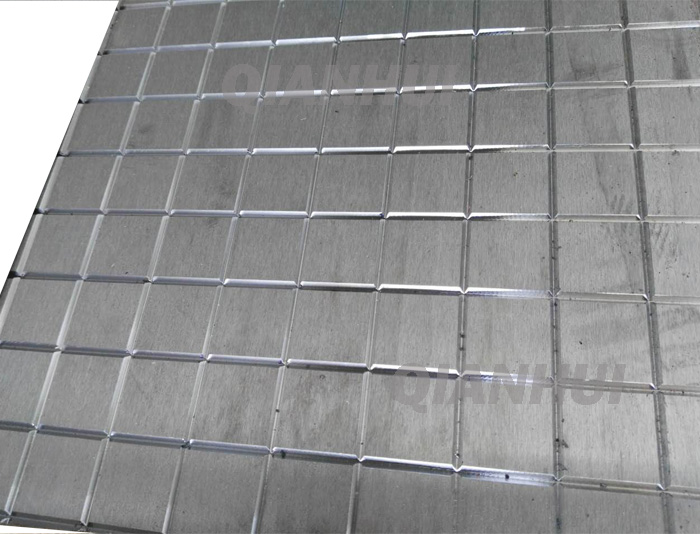

Hot Platen Size	2700X1370X52 mm
Hot Platen Material	Q345
Steam Infeed Type	Double inlet double outlet
Product Dimension	1220X2440 mm
Opening	80mm
Layer Number	25 Layers
Main Cylinder Diameter and No.	Φ280mmx2150mmx6 pcs
Lifting Cylinder Diameter and No.	Φ140mmx2150mmx2 pcs
Working Stroke	2500mm
Working Pressure	kg/cm2
Closing Speed	15s
Overall Dimension	3590x1370x6000mm
Hydraulic Station Dimension	3200x1500x2800
Hydraulic Station Volume	3.5m³
Hydraulic Station Weight	3Tons
Total Motor Power	72kw
Total weight	75Tons
